Need

Model deployment is a fundamental step in Semarchy xDM.


All runtime artifacts (tables, views, jobs, APIs...) are generated in the target database during deployment. While deployment is usually straightforward, errors may occur when:

  • The model’s configured Target Database does not match the actual DBMS.
  • The model was originally created for another database platform.
  • The default database type (typically PostgreSQL) was not adjusted.

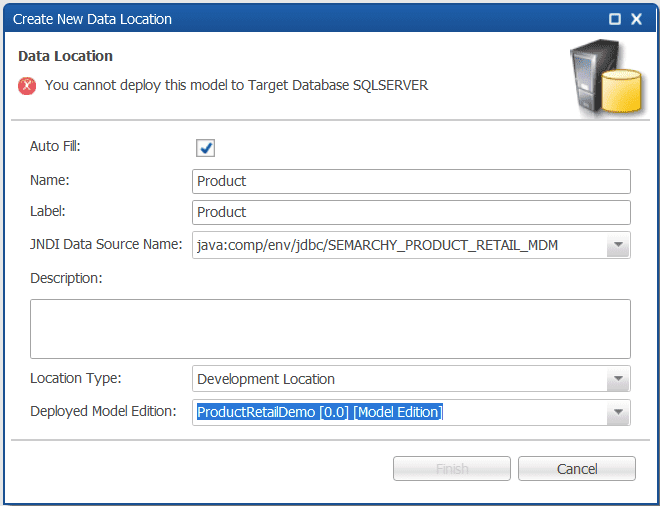

A typical error message looks like: "You cannot deploy this model to Target Database <xxx>".


Summarized Solution

To resolve this issue:

  • Open the model in Application Builder.
  • Double-click the root node of the model.
  • Locate the Target Database property.
  • Change it to match your actual DBMS.
  • Validate and redeploy the model.

The Target Database setting must match the database type configured in the data location.


Detailed Solution

1. Understand the root cause

When creating a new model:

  • The default target database is often POSTGRESQL.
  • If your environment uses another DBMS, this setting must be manually updated.


If the model’s target database does not match the database type of the data location:

  • xDM prevents deployment.
  • The error message is displayed.
  • No database objects are generated.

This is a protective mechanism to prevent incompatible DDL generation.

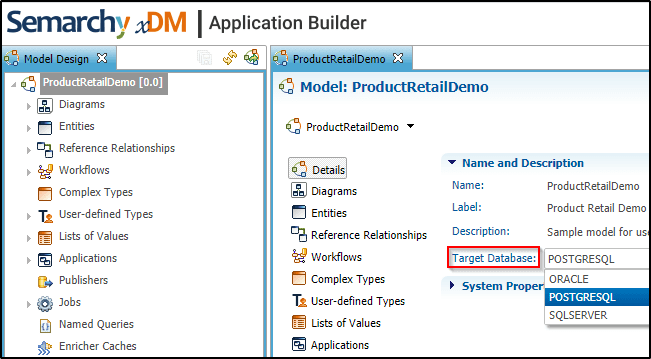

2. How to verify the target database setting

  • In the application builder, open the model you are attempting to deploy.
  • In the model design panel, double-click the root node (top-level model element).
  • Locate the property target database.
  • If the value does not match your actual database platform, deployment will fail.


3. Correct the target database

  • Change the target database to match your environment:



  • Save and validate the model.
  • Redeploy.

Deployment should now proceed successfully.


4. Verify data location configuration

If the issue persists, also verify:

  • The data location is configured with the correct database connection.
  • The JDBC driver corresponds to the correct DBMS.


5. When migrating between DBMS platforms

If you migrated a model from one DBMS to another:

  • Change the target database property.
  • Review data types (some DB-specific differences may exist).
  • Regenerate DDL by redeploying.
  • Ensure no database-specific SQL logic remains incompatible.
